Special shapes and special shapes of frames for manhole covers of SP series in round or square form

SPECIAL DESIGN COVER AND SPECIAL FRAMES TYPES: SP1 RD

All dimensions below are available for D400 category; all other categories are available.

FRAME DIMENSIONSCOVER DIMENSIONS
DESCRIPTIONA x A
(mm)
B x B
(mm)
C (mm)D x D (mm)E (mm)WEIGHT (kg)
SP1 RD600850 x 850Ø 600100Ø 63075106
SP1 RD600 close
SP1 RD600 open Frame

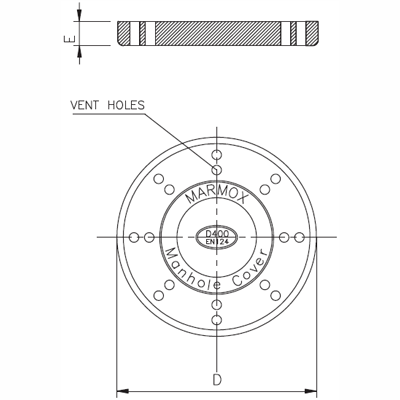

Cover

SPECIAL DESIGN COVER AND SPECIAL FRAMES TYPES: SP2 RD

FRAME DIMENSIONSCOVER DIMENSIONS
DESCRIPTIONA x A
(mm)
B x B
(mm)
C (mm)D x D (mm)E (mm)WEIGHT (kg)
SP2 RD600850 x 850Ø 600100Ø 63075104
F 900 close
F 900 open Frame
Cover

SPECIAL DESIGN COVER AND SPECIAL FRAMES TYPES: SP3 SQ

FRAME DIMENSIONSCOVER DIMENSIONS
DESCRIPTIONA x A
(mm)
B x B
(mm)
C (mm)D x D (mm)E (mm)WEIGHT (kg)
SP3 SQ 600 x 600850 x 850600 x 600100625 x 62575118
SP3 SQ close
SP3 SQ open Frame
Cover
